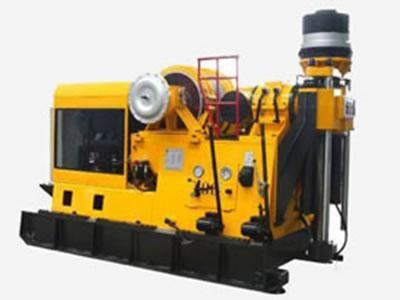

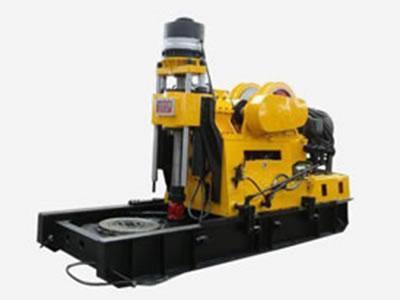

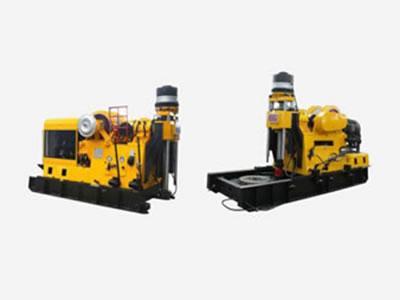

Drill Rig (XY-8)

Brief Introductions of XY-8 Drill Rig

The XY-8 drill rig is used to install sub-surface fabrications, such as underground utilities, tunnels or wells instrumentation. In geography investigation and exploration, it is used as a drilling machine. XY-8 drill rig is suitable for different kinds of solid minerals. Geotec provides a variety of drill rigs and core drilling machines used for different geographical requirements. Any further information, please don't hesitate to contact us.

Specifications of Drill Rig XY-8
Drilling depth 1000m-3000m
Rotate speed (rpm) Clockwise rotation rates 79;136;121;363;220;379;589;1011
Anti-clockwise rotation rates 51;142
Diameter of drilling rod Ф50;Ф60;Ф71;Ф89;Ф114 mm
Spindle stroke 1000 mm
Shift range 690 mm
Max. hoisting force 300 kN
Max. pressuring force 141 kN
Max. single-wire hoisting force 125 kN
Max. content of winding drum 120 m
Steel wire size 21.5 mm
Hoisting speed 0.663;1.09;1.693;2.90;1.761;3.034;4.713;8.803
Electromotor model Y2-280M-4
Electromotor output 90 kw
Electromotor rotation rate 1480 r/min
Diesel engine model YC6B180D
Diesel engine output 134 kw
Diesel engine rotation rate 1800 r/min
Dimensions With electromotor 3905×1692×2603 mm
With diesel engine 4105×1892×2803 mm
Weight 4850 kg
