Surface Set Diamond Bits, Core Drill Bits

Surface Set Diamond Bits, Core Drill Bits
Introduction of Surface Set Diamond Bits

Being designed with a singular layer of natural/synthetic diamond and utilizing a hard matrix compound on the bit face, our surface set diamond bits can help ensure sufficient overlap to prevent premature wear of the matrix. This diamond tool is also suitable for drilling broken formation rocks which cannot be cored.

Applications of Surface Set Diamond Bits

Surface set diamond bits can greatly make up for the defects of impregnated diamond bits. Firstly, Surface Set Diamond Bits are regularly used for drilling relatively soft, abrasive, unconsolidated formations which usually can not be drilled by impregnated diamond bits effectively. Secondly, drilling for harder formations is also possible when the available rotational speed and bit loads are insufficient for utilizing impregnated diamond bits. Additionally, this diamond tool is also suitable for drilling broken formation rocks which cannot be cored.

Diamond bits type
  • Surface set core bit stepped type
    Surface set core bit stepped type
  • Surface set core bit semi round type
    Surface set core bit semi round type
  • Surface set diamond bits with face discharge configuration
    Surface set diamond bits with face discharge configuration

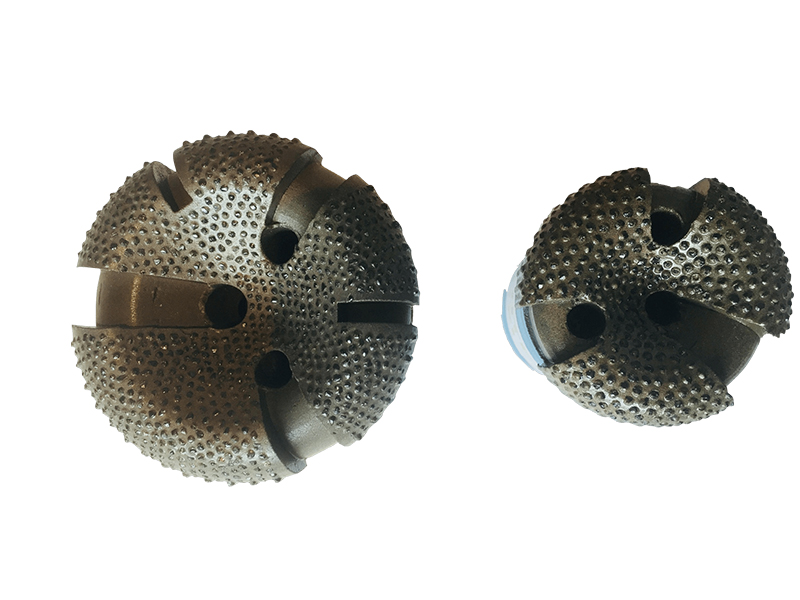

  • Natural Diamond S/S Non-coring Bits
    Natural Diamond S/S Non-coring Bits
Available size for surface-set diamond bits

Wireline Series: AWL, BWL, NWL, HWL, PWL, NWL-2, NWL-3, NWL-TT, HWL-3, HWL-TT, PWL-3, PWL -TT, AWL-TK, BWL-TK
T2 Series: T2 46, T2 56, T2 66, T2 76, T2 86, T2 101
T6 Series: T6 76, T6 86, T6 101, T6 116, T6 131, T6 146, T6S 101
T Series: T36, T46, T56, T66, T76, T86
Z Series: Z46, Z56, Z66, Z76, Z86, Z101, Z116, Z131, Z146
B Series: B36, B46, B56, B66, B76, B86, B101, B116, B131, B146
WF Series: HWF, PWF, SWF, UWF, ZWF
WT Series: RWT, EWT, AWT, BWT, NWT, HWT
WM Series: EWM, AWM, BWM, NWM
WG Series: EWG, AWG, BWG, NWG, HWG
Others: NMLC, HMLC, LTK48, LTK60, BGM, NGM, ADBG, TBW, TNW, ATW, BTW, NTW, NXD3, AX, NX, NXC, AXT, T6H, 49/16, NWD4, 412F, SK6L146, TT46, TB56, TS116, CHD101
