Spindle Core Drilling Machine

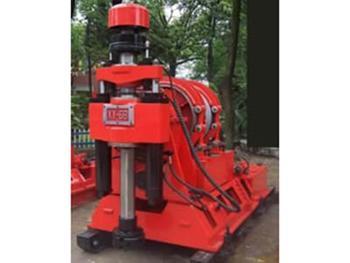

XY-6B spindle core drilling machine is a hydraulic feeding machine used as a mechanical transmits. The spindle is assembled with hydraulic chuck and automatic centering manual chuck, and hoist is equipped with water brake. This type of drill rig is mainly used to explore the solid mineral deposits as well as shallow oil and gas with large-hole core drilling.
Features of Spindle Core Drilling Machine XY-6B- Rotation speeds: have an appropriate range to satisfy the varied demands of drilling.
- Large diameter core drilling is available.
- Disassembly, transportation, operation and maintenance are all easy to deal with.
- Low running cost.
- If the client requires the diesel engine or motor, they are available and cost-effective.
| DRILLING CAPACITY | ||
| Core Drilling Rod | ||
| Φ50 | 2000m | |
| Φ60 | 1500m | |
| Wire-line Core Drilling Rod | ||
| Φ55.5 | 2000m | |
| Φ71 | 1500m | |
| Φ89 | 1000m | |
| DCDMA Drilling Rods | ||
| BWL | 2000m | |
| NWL | 1700m | |
| HWL | 1200m | |
| DRILLING ANGLE | 90-80° | |
| SWIVEL HEAD | ||
| Spindle I.D. | 96mm | |
| Spindle Speed (rpm) | Forward | 80, 175, 225, 260, 360, 490, 730, 1000 |
| Reverse | 62, 170 | |
| Spindle Stroke | 600mm | |
| Max. Torque of Spindle | 6700N.m | |
| Dia. of Feeding Cylinder | 125mm | |
| Max. Pressuring Force of Spindle | 150kN | |
| Max. Lifting Force of Spindle | 200kN | |
| HOIST | ||
| Hoist Capacity (Single Rope) | 60kN | |
| Lifting Speed (m/s) | 0.66, 1.44, 1.85, 2.13, 2.92, 4 | |
| Wire Rope | Φ20mm | |
| Drum Capacity (Six Layers) | 140m | |
| HYDRAULIC PUMP | YBC45/80 Gear Pump | |
| Displacement (L/min) | 45L/min | |
| Working Pressure | 8MPa | |
| Max. Pressure | 12MPa | |
| Rotation | 1500rpm | |
| Power | 14kW | |
| WATER BRAKE | ||
| Working Speed (rpm) | 700-800rpm | |
| Balance Speed (single rope) | 3-8m/s | |
| Balance Load (single rope) | 45kN | |
| SKID-TYPE FRAME | ||
| Dia. of Cylinder | Φ75mm | |
| Retraction Stroke | 550mm | |
| POWER UNIT | ||
| Electric Motor Y250M-43 | 55kW; 1480rpm | |
| Diesel Engine 4135G | 100Hp; 1500rpm | |
| Overall Dimension LxWxH | 3450X1500X2250mm | |
| Weight (without power unit) | 3800kg | |
