Core Drill (XY-5)

Core Drill (XY-5)

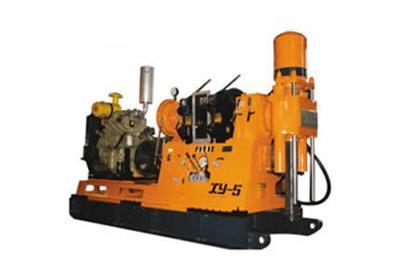

Brief Introductions of XY-5 Core Drill

XY-5 core drill is specially designed to use in various drilling processes. Torque, drilling pressure, pump volume, pump pressure are controlled by a supervisory system (we install it according to user requirement). This type of drill rig can monitor the parameters. We can provide the best products according to the client's requirements.

Features of XY-5 Core Drill
  • The gears are set into a wide range of vertical drill speed.
  • High strength and strong capacity of drilling is guaranteed by large drilling torque.
  • Adopt the connecting rod reinforcement spring cramp to ensure the safe and easy operation. The clamping can be with large force, longevity and high reliability.
  • Hydromatic brake is equipped in XY-5 core drills, which on one hand guarantees a stable and safe performance of our core drills, on the other hand helps keep a long service life for band-type brake.
  • Use the quality article brands: automobile gearbox, clutch and universal power transmission shaft.
  • Motor drived and diesel engine drived core drills are both availlable.
Specifications of XY-5 Core Drill
XY-5 Core Drill
Engine Name Electrical motor Diesel engine model
Type Y225M-4B35 R4105 IZLD
Power (Kw) 45 66
Speed (r/min) 1480 1500
Chisel in the ability Φ50 Drilling rod Drilling depth < 1600 m
Swivel head Spindle speed (r/min) Clockwise: 41-1071
Contrarotate: 46,144
Spindle Max output-torque (Nm) 5200 (6r/min)
Spindle diameter (mm) 93
circumvolve angle 0-360º
Upgrade capacity (KN) Rated:140
Pressurizes the ability (KN) Rated: 96
Pressurizes the ability (KN) 600
Hydraulic system Type Planetary Type
Single-rope lifting-force (KN) Max 55
Single-rope lifting-speed (m/s) 0.76-3.85
Roll diameter (mm) 295
Steel cable diameter (mm) 18.5
Water brake Work speed (rpm) 700-1800
Single-rope balance speed (m/s) 3-8
Single-rope balance load (KN) 50
Hydraulic system Type of oil pump CBTL-E430/E410-AFPL
Displacement (ml/r) 30+10
System press (MPa) 10
Mobile oil cylinder stroke (mm) 500
Dimensions (L*W*H) (mm) 3231*1150*1960 (including motor)
3260*1115*1960 (including Diesel engine)
Weight (Kg) 3500
